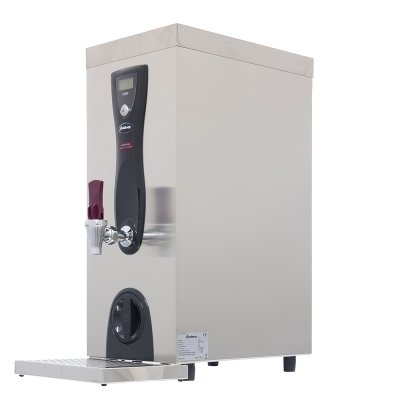

150F

The SF range are an offshoot of the powerful CPF Series. They offer substantial initial draw off and excellent hourly output at a highly competitive price.

Features and Benefits

  • Basic fault self-diagnosis with LCD read out
  • Built-in multi-purpose filtration
  • Electronic temperature control for constant temperature at around 97°C
  • Easy access for service and cleaning
  • Long-life incoloy elements
  • Boil dry protection
  • Stainless steel drip tray included
  • 28 litres per hour output

Installation

Easy to install on a stable worktop.

Plumbing

Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear (optional additional kit) or front overflow as standard.

Electrical

To be connected to 230 volt supply with a suitable break capacity of 13 amps.

Construction

  • Brushed stainless steel case.
  • Stainless steel heating chamber.
  • Low voltage switching.
  • Two safety cut-outs.
  • Features and Benefits
  • Basic fault self-diagnosis

SPECIFICATION FOR 1501F

  • Height (mm) 610
  • Width (mm) 252
  • Depth (mm) 518
  • Tap clearance to drip tray (mm) 190
  • Rear connection clearance (mm) 50
  • Depth excluding drip tray (mm) 362

TECHNICAL DATA FOR 1501F*

  • Power loading (kW) 3
  • Heat-up time (mins) 32
  • Recovery Rate (litres) 0.5
  • Stand by Power (kW/h) 0.087
  • Rapid Draw-Off (litres) 10
  • Rapid Draw-Off (cups) 60
  • Hourly Output (litres) 27
  • Hourly Output (cups) 162
  • Based on 6 Cups Per Litre
