DB2000

Ideal for self-service, the DB2000 has an optional advanced programmable locking system. This allows the unit to be ready for use at the touch of an electronic key and is perfect for high security users or where health and safety is a concern

Features and Benefits

  • Electronically controlled for constant temperatures
  • Programmable down to 80°C if required
  • Simple push and hold dispense button
  • Energy saving ECO mode
  • Lock-off setting using electronic key-fob
  • Early warning LCD diagnostics
  • Five water level sensors

Installation

Counter mounted with drip tray.

Plumbing

Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.

Electrical

Fitted with 1.75 metres of cable and a 13amp moulded plug.

Construction

Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.

Approvals

WRAS approved.

Locking System

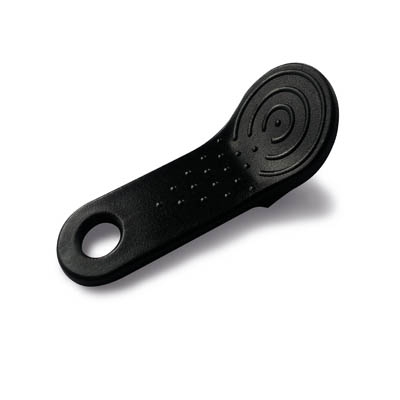

The locking system is activated by touching an electronic key fob against a sensor (located below the display panel). The boiling water dispense function can be set up in four different ways;

1 NONE/OPEN (Standard setting) – No lock. Simply push & hold button to dispense boiling water.

2 TOGGLE – Key fob turns the dispense function on and off sequentially, as required.

3 TIMED – Boiling water dispense is available for a pre-set time (adjustable in minutes), determining how long it can be used before locking off.

4 ONE-SHOT – A single drink can be dispensed before the boiling water function locks off. One key fob is supplied with each boiler with additional keys available from Instanta spares department (Part No: DBKF021). Up to 20 individual keys can be programmed.

Download Full Specification Sheet
Download Installation & User Manual

SPECIFICATION FOR DB2000

  • Height (mm) 608
  • Width (mm) 260
  • Depth (mm) 465
  • Tap clearance to drip tray (mm) 145
  • Rear connection clearance (mm) 45

TECHNICAL DATA FOR DB2000*

  • Power loading (kW) 3
  • Heat-up time (mins) 32
  • Recovery Rate (litres) 0.5
  • Stand by Power (kW/h) 0.09
  • Rapid Draw-Off (litres) 12
  • Rapid Draw-Off (cups) 72
  • Hourly Output (litres) 28
  • Hourly Output (cups) 168
  • Based on 6 Cups Per Litre
